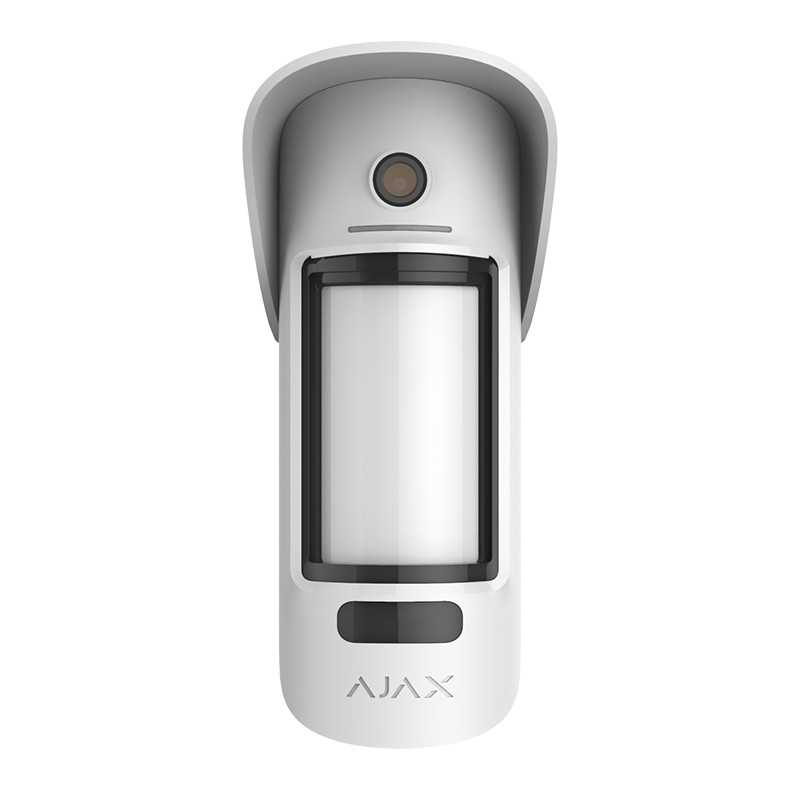

Ajax MotionCam Outdoor

Product Downloads

Product Specsheet

Ajax MotionCam Outdoor

Part No: CC552W

Manufacturer SKU#: 38192.84.WH1

View Similar Products in Alarm Systems

Regal Account holders please Sign Up or Login to view pricing

Product Specifications

Classification: Electro-optical radio channel security detector
Installation method: Outdoors/indoors
Recommended installation height: 0,8 to 1,3m
Compatibility: Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G)
Sensing element: 2 PIR sensors
Motion detection distance: Adjustable, from 3 to 15m
Pet immunity: Up to 80cm tall
Sensitivity: Adjustable, 3 levels
Does not work with ReX, only ReX 2
Sensing element: 2 ? PIR sensor
Viewing angle: Horizontal 88,5 degress Vertical 80 degree
Cameras angle: Horizontal 105 degress Vertical 102 degress
